Tonight I finally finished the build and took it out for a few short trips around the block to get it fit properly and make a few adjustments here and there.
The frame is from Tsunami who is located in Phoenix Arizona (not to be confused with the Tsunami bikes that Chucks bikes used to sell before the went out of business). Tsunami bikes make custom frames out of (I believe) 7005 series aluminum then heat treat the frames after construction.
The have some stock frame sizes but specialize in custom geometry...which is the way I went because I'm very hard to fit on a bike with short legs, short femurs and a long torso.
The Geometry for the bike:
Top Tube: 57 cm
Seat Tube: 50 cm
Seat Tube Angle: 74 degrees
Head Tube: 11.2 cm (Total stack height 14 cm)
Head Tube Angle: 73.5 degrees
Frame weight was 2 pounds 13 oz with the Chris King headset installed (so take 2 oz away for the headset). Total bike weight with power tap and bottle cages comes in at 18 pounds 6 ounces. It's a bit heavier than my old Velo Vie, but fits better overall with less compromises when it comes to fit.
I'll be looking forward to taking it out over the next couple of days if the weather holds...and really put it through it's paces on Saturday at the group ride if the weather is nice.

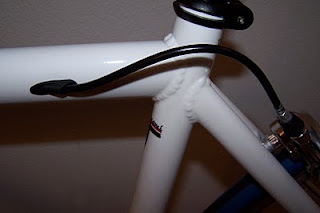

Internal rear brake cable routing...Pretty slick and easier that I would have thought.
A close up of the rear internal brake cable routing
A picture of the head tube junction and welds on the frame.
When I have time I'll take some better pictures outside with better lighting as it looks much better than it does in with the inside shots.
